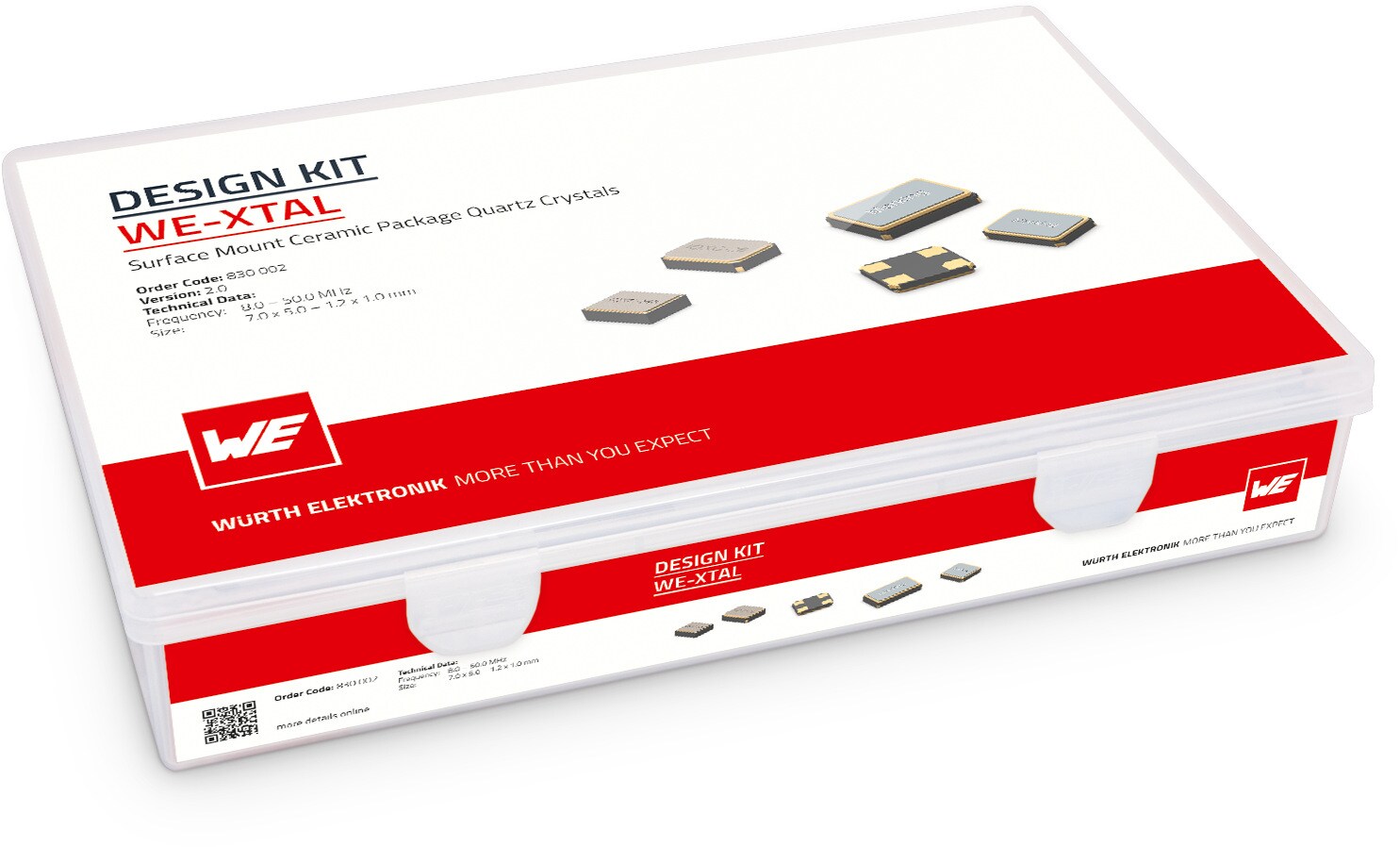

Design Kit WE-XTAL Surface Mount Ceramic Package Quartz Crystals

Order Code 830002

Products

Order Code SPEC Downloads Product series Size f
(MHz)
Cload
(pF)
Operating Temperature L
(mm)
W
(mm)
H
(mm)
Samples
830026380
ALT EAG CAD CAD WE-XTAL Quartz Crystal 12SMX 8 16 -20 up to +70 °C 7 5 1.4
830026382
ALT EAG CAD CAD WE-XTAL Quartz Crystal 12SMX 11.0592 16 -20 up to +70 °C 7 5 1.4
830026384
ALT EAG CAD CAD WE-XTAL Quartz Crystal 12SMX 12 16 -20 up to +70 °C 7 5 1.4
830026388
ALT EAG CAD CAD WE-XTAL Quartz Crystal 12SMX 14.7456 16 -20 up to +70 °C 7 5 1.4
830026392
ALT EAG CAD CAD WE-XTAL Quartz Crystal 12SMX 16 16 -20 up to +70 °C 7 5 1.4
830026394
ALT EAG CAD CAD WE-XTAL Quartz Crystal 12SMX 20 16 -20 up to +70 °C 7 5 1.4
830026396
ALT EAG CAD CAD WE-XTAL Quartz Crystal 12SMX 24.576 16 -20 up to +70 °C 7 5 1.4
830030819
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 16 18 -10 up to +60 °C 5 3.2 1
830033643
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 14.31818 18 -10 up to +60 °C 5 3.2 1
830035267
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 24.576 16 -10 up to +60 °C 3.2 2.5 0.8
830035268
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 25 16 -10 up to +60 °C 3.2 2.5 0.8
830035503
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 16.384 16 -10 up to +60 °C 3.2 2.5 0.8
830050991
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 26 10 -40 up to +85 °C 2.5 2 0.6
830053099
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 27.12 10 -20 up to +70 °C 3.2 2.5 0.8
830055293
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 14.7456 18 -40 up to +85 °C 3.2 2.5 0.8
830055295
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 12 18 -40 up to +85 °C 3.2 2.5 0.8
830055299
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 25 18 -40 up to +85 °C 3.2 2.5 0.8
830055663
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 8 18 -40 up to +85 °C 5 3.2 1
830055951
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 16 18 -40 up to +85 °C 3.2 2.5 0.8
830055962
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 30 12 -10 up to +60 °C 3.2 2.5 0.8
830056808
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 20 18 -40 up to +85 °C 5 3.2 1
830057824
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 27 18 -40 up to +85 °C 3.2 2.5 0.8
830058124
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 24 18 -40 up to +85 °C 3.2 2.5 0.8
830058149
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 24 10 -20 up to +70 °C 3.2 2.5 0.8
830059477
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 12.8 15 -40 up to +85 °C 5 3.2 1
830059522
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 12 18 -40 up to +85 °C 5 3.2 1
830059523
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 12.288 18 -40 up to +85 °C 5 3.2 1
830059530
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 24 18 -40 up to +85 °C 5 3.2 1
830059531
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 24.576 18 -40 up to +85 °C 5 3.2 1
830059532
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 25 18 -40 up to +85 °C 5 3.2 1
830059535
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 32 18 -40 up to +85 °C 5 3.2 1
830059537
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 40 18 -40 up to +85 °C 5 3.2 1
830059539
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 48 18 -40 up to +85 °C 5 3.2 1
830059638
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 20 18 -40 up to +85 °C 3.2 2.5 0.8
830059643
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 26 18 -40 up to +85 °C 3.2 2.5 0.8
830059646
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 30 18 -40 up to +85 °C 3.2 2.5 0.8
830059648
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 40 18 -40 up to +85 °C 3.2 2.5 0.8
830060258
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 32 10 -20 up to +70 °C 3.2 2.5 0.8
830060843
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 50 10 -20 up to +70 °C 3.2 2.5 0.8
830072604
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 25 8 -40 up to +85 °C 3.2 2.5 0.8
830063334
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 25 10 -40 up to +85 °C 2.5 2 0.6
830064296
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 16 8 -10 up to +70 °C 3.2 2.5 0.8
830072404
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 26 18 -40 up to +85 °C 5 3.2 1
830072402
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-104 10 18 -40 up to +85 °C 5 3.2 1
830069377
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 32 18 -40 up to +85 °C 3.2 2.5 0.8
830069381
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 20 10 -40 up to +85 °C 2.5 2 0.6
830069383
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 24 10 -40 up to +85 °C 2.5 2 0.6
830069387
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 24.576 10 -40 up to +85 °C 2.5 2 0.6
830069882
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-180 12 10 -40 up to +125 °C 3.2 2.5 0.8
830069390
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 32 10 -40 up to +85 °C 2.5 2 0.6
830069392
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 16 10 -40 up to +85 °C 2.5 2 0.6
830069395
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 16.384 10 -40 up to +85 °C 2.5 2 0.6
830069400
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 18.432 18 -40 up to +85 °C 2.5 2 0.6
830069404
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 19.2 10 -40 up to +85 °C 2.5 2 0.6
830069405
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 27 18 -40 up to +85 °C 2.5 2 0.6
830069407
ALT EAG CAD CAD WE-XTAL Quartz Crystal CFPX-218 30 10 -40 up to +85 °C 2.5 2 0.6
830059585
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-42 20 10 -40 up to +85 °C 2 1.6 0.5
830059591
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-42 26 10 -40 up to +85 °C 2 1.6 0.5
830059596
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-42 30 10 -40 up to +85 °C 2 1.6 0.5
830059597
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-42 32 10 -40 up to +85 °C 2 1.6 0.5
830059627
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-42 38.4 10 -40 up to +85 °C 2 1.6 0.5
830059632
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-42 40 10 -40 up to +85 °C 2 1.6 0.5
830072546
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-42 48 10 -40 up to +85 °C 2 1.6 0.5
830072543
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-42 27 10 -40 up to +85 °C 2 1.6 0.5
830072541
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-26 27 8 -20 up to +70 °C 1.6 1.2 0.45
830072539
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-26 24 8 -20 up to +70 °C 1.6 1.2 0.45
830066742
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-26 26 8 -20 up to +70 °C 1.6 1.2 0.45
830069528
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-26 48 8 -20 up to +70 °C 1.6 1.2 0.45
830069527
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-26 40 8 -20 up to +70 °C 1.6 1.2 0.45
830069526
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-26 32 8 -20 up to +70 °C 1.6 1.2 0.45
830069494
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-42 25 10 -40 up to +85 °C 2 1.6 0.5
830069493
ALT EAG CAD CAD WE-XTAL Quartz Crystal IQXC-42 24 10 -40 up to +85 °C 2 1.6 0.5
