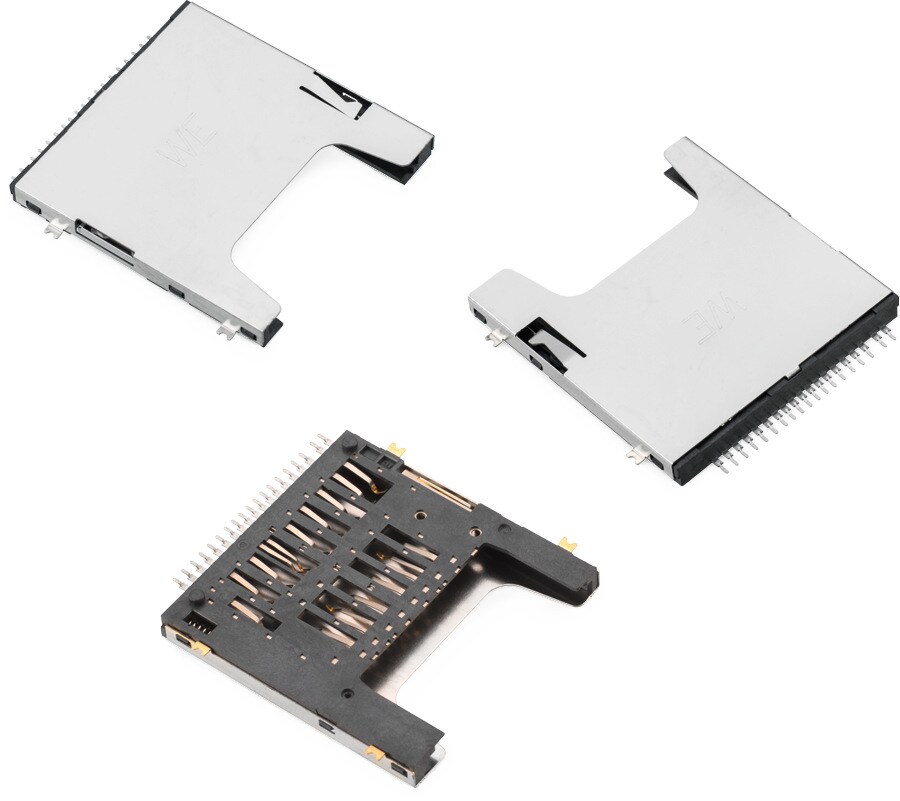

WR-CRD SD Card Connector 4.0 Push & Push with Card Detection 19 pins

General Information
Operating Temperature-20 °C up to +60 °C
GenderSocket
TypePush & Pull
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
Shielding MaterialStainless Steel
Shielding PlatingNickel (Ni)
Electrical Properties
Working Voltage10 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance100 mΩ

Products

Order Code Data­sheet DownloadsPinsGenderTypeMountOperating TemperatureWorking Voltage
(V (AC))
Design Kit Samples
693161011911SPEC
6 files 19 Socket Push & Pull SMT -20 °C up to +60 °C 10612690
Order Code Data­sheet
693161011911SPEC
Samples
Order Code Data­sheet DownloadsPinsGenderTypeMountOperating TemperatureWorking Voltage
(V (AC))
Design Kit Samples
