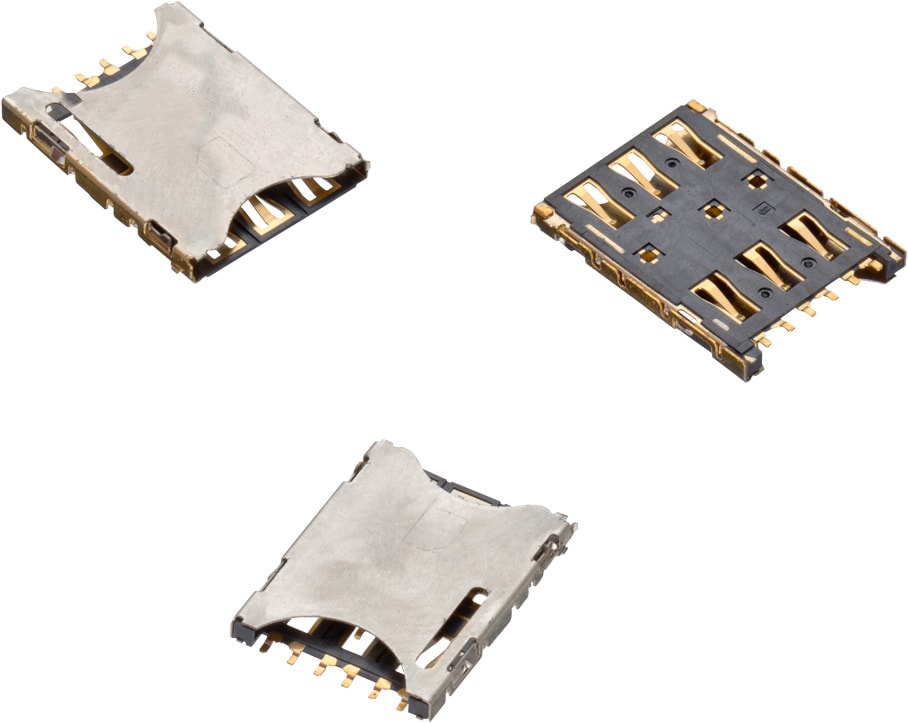

WR-CRD Nano SIM Card Connector

General Information
Operating Temperature-25 °C up to +85 °C
GenderSocket
TypePush & Pull
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingGold Flash
Contact TypeStamped
Shielding MaterialStainless Steel
Shielding PlatingNickel (Ni)
Electrical Properties
Working Voltage15 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance100 mΩ

Products

Order Code Data­sheet DownloadsPinsGenderTypeMountOperating TemperatureWorking Voltage
(V (AC))
Design Kit Samples
693043020611SPEC
6 files 6 Socket Push & Pull SMT -25 °C up to +85 °C 15614001
Order Code Data­sheet
693043020611SPEC
Samples
Order Code Data­sheet DownloadsPinsGenderTypeMountOperating TemperatureWorking Voltage
(V (AC))
Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
