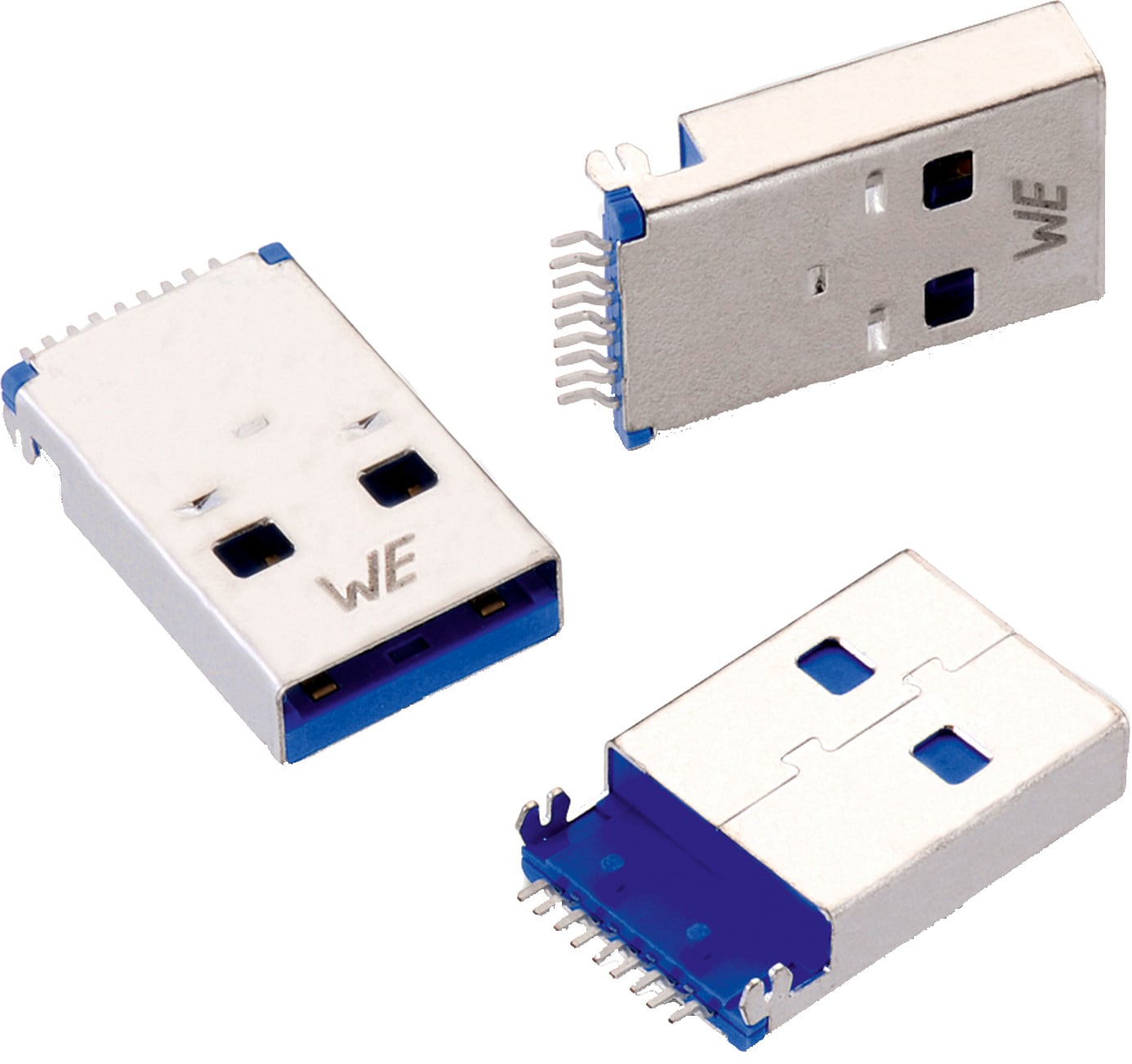

WR-COM USB 3.0 Type A SMT Plug with Clip

Kind Properties
Durability5 000 Mating cycles
Connector TypeUSB
GenderPlug
TypeHorizontal
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Insulator ColorBlue
Contact MaterialPhosphor Bronze
Contact PlatingMatte Tin over Nickel
Contact TypeStamped
Shielding MaterialSteel
Shielding PlatingTin
General Information
Operating Temperature-20 up to +85 °C
Electrical Properties
Working Voltage30 V (AC)
Withstanding Voltage100 V (AC)
Contact Resistance50 mΩ

Products

Order Code Data­sheet DownloadsApplicationInterface TypeTypePCB Thickness
(mm)
GenderPinsMountWorking Voltage
(V (AC))
PackagingSample BagDesign Kit Samples
692112030100SPEC
6 files USB 3.0 Type A Horizontal 1.6 Plug 9 SMT 30 Tray829993BAG
614001
Order Code Data­sheet
692112030100SPEC
Samples
Order Code Data­sheet DownloadsApplicationInterface TypeTypePCB Thickness
(mm)
GenderPinsMountWorking Voltage
(V (AC))
PackagingSample BagDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
