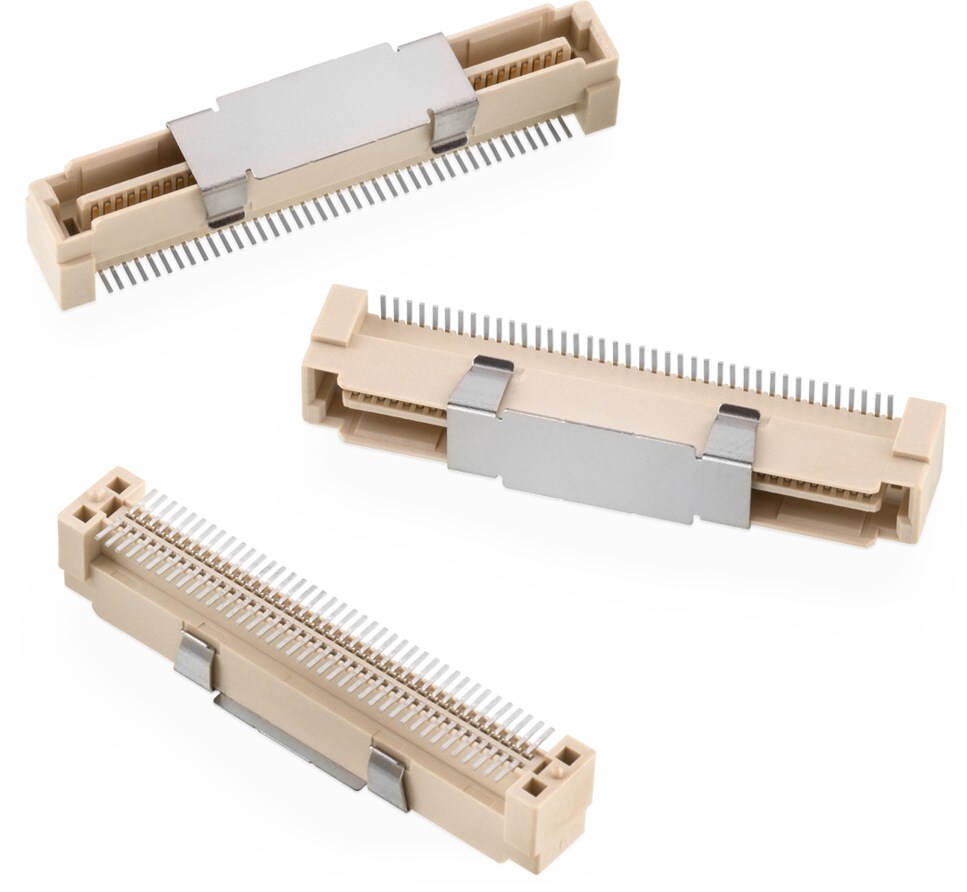

WR-BTB 0.80 mm Male Vertical SMT 7.60 Plug

Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Insulator ColorIvory
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
General Information
Operating Temperature-55 °C up to +85 °C
ComplianceLead free / RoHS
Pitch0.8 mm
Quality Class30 Mating cycles
Electrical Properties
Working Voltage50 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance50 mΩ
RISO100 MΩ
UL ApprovalE323964
Packaging Properties
PackagingTape and Reel with Cap

Products

Order Code Data­sheet DownloadsPinsH
(mm)
GenderTypeIR
(A)
PackagingDesign Kit Samples
658857603080SPEC
6 files 80 7.6 Male Plug Vertical 0.5 Tape and Reel with Cap612690
658001
Order Code Data­sheet
658857603080SPEC
Samples
Order Code Data­sheet DownloadsPinsH
(mm)
GenderTypeIR
(A)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
