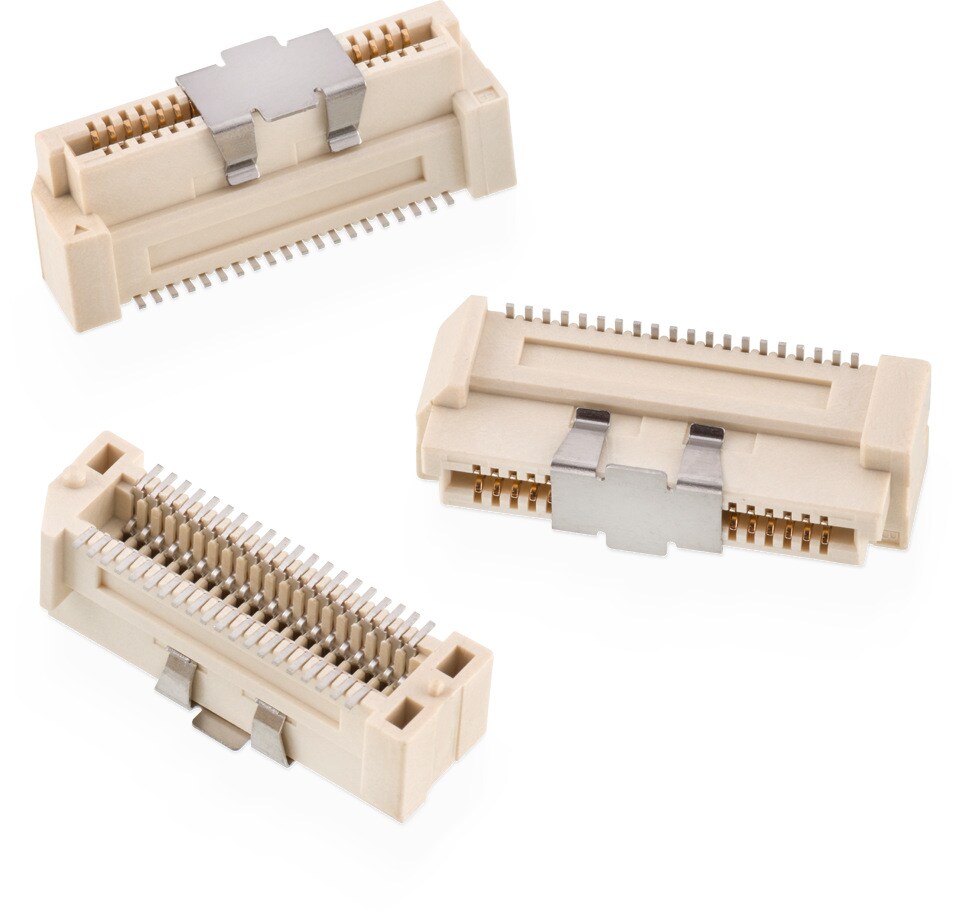

WR-BTB 0.80 mm Female Vertical SMT 7.75 Receptacle w. Chamfer

Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Insulator ColorIvory
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
General Information
Operating Temperature-55 °C up to +85 °C
ComplianceLead free / RoHS
Pitch0.8 mm
Quality Class30 Mating cycles
Electrical Properties
IR0.5 A
Working Voltage50 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance50 mΩ
RISO100 MΩ
UL ApprovalE323964
Packaging Properties
PackagingTape and Reel with Cap

Products

Order Code Data­sheet DownloadsPinsH
(mm)
GenderTypeIR
(A)
PackagingDesign Kit Samples
658807713040SPEC
6 files 40 7.75 Female Receptacle Vertical 0.5 Tape and Reel with Cap612690
658001
658807713080SPEC
6 files 80 7.75 Female Receptacle Vertical 0.5 Tape and Reel with Cap612690
658001
658807713100SPEC
6 files 100 7.75 Female Receptacle Vertical 0.5 Tape and Reel with Cap658001
