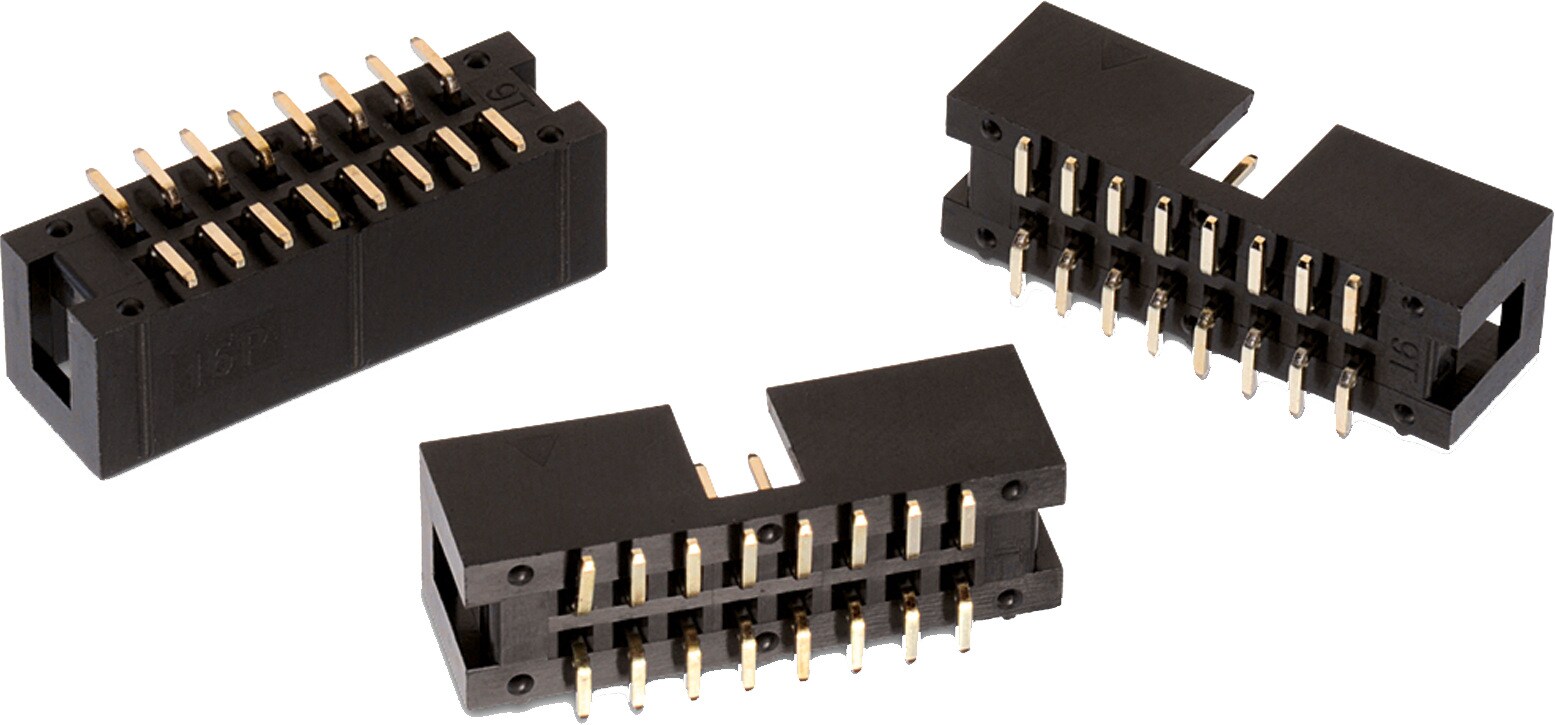

2.54 mm Male SMT Box Header (Reel)

Kind Properties
Pitch 2.54 mm
Gender Male
Material Properties
Insulator Material PA6T
Insulator Flammability Rating UL94 V-0
Color Black
Contact Material Copper Alloy
Contact Plating Gold
Contact Type Stamped
General Information
Operating Temperature -40 up to +125 °C
Compliance RoHS
Working Voltage 250 V (AC)
Withstanding Voltage 500 V (AC)
Contact Resistance 20 mΩ
RISO 1000 MΩ
Certification
UL Approval E323964
Packaging Properties
Packaging Tape and Reel with Cap

Products

Order Code SPEC Downloads Pins Pitch
(mm)
Gender Type Mount L
(mm)
IR 1
(A)
Working Voltage
(V (AC))
Contact Resistance
(mΩ)
Tol. R Packaging Design Kit Samples
61231020621
IGE STE 3D ALT EAG CAD 10 2.54 Male Straight SMT 20.5 3 250 20 max. Tape and Reel with Cap 612001
61231420621
IGE STE 3D ALT EAG CAD 14 2.54 Male Straight SMT 25.58 3 250 20 max. Tape and Reel with Cap 612001
612690
61231620621
IGE STE 3D ALT EAG CAD 16 2.54 Male Straight SMT 28.12 3 250 20 max. Tape and Reel with Cap 612001
61232020621
IGE STE 3D ALT EAG CAD 20 2.54 Male Straight SMT 33.2 3 250 20 max. Tape and Reel with Cap 612001
61232620621
IGE STE 3D ALT EAG CAD 26 2.54 Male Straight SMT 40.82 3 250 20 max. Tape and Reel with Cap 612001
61233420621
IGE STE 3D ALT EAG CAD 34 2.54 Male Straight SMT 50.98 3 250 20 max. Tape and Reel with Cap 612001
61234020621
IGE STE 3D ALT EAG CAD 40 2.54 Male Straight SMT 58.6 3 250 20 max. Tape and Reel with Cap
Order Code SPEC
61231020621
61231420621
61231620621
61232020621
61232620621
61233420621
61234020621
Samples
Order Code SPEC Downloads Pins Pitch
(mm)
Gender Type Mount L
(mm)
IR 1
(A)
Working Voltage
(V (AC))
Contact Resistance
(mΩ)
Tol. R Packaging Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
