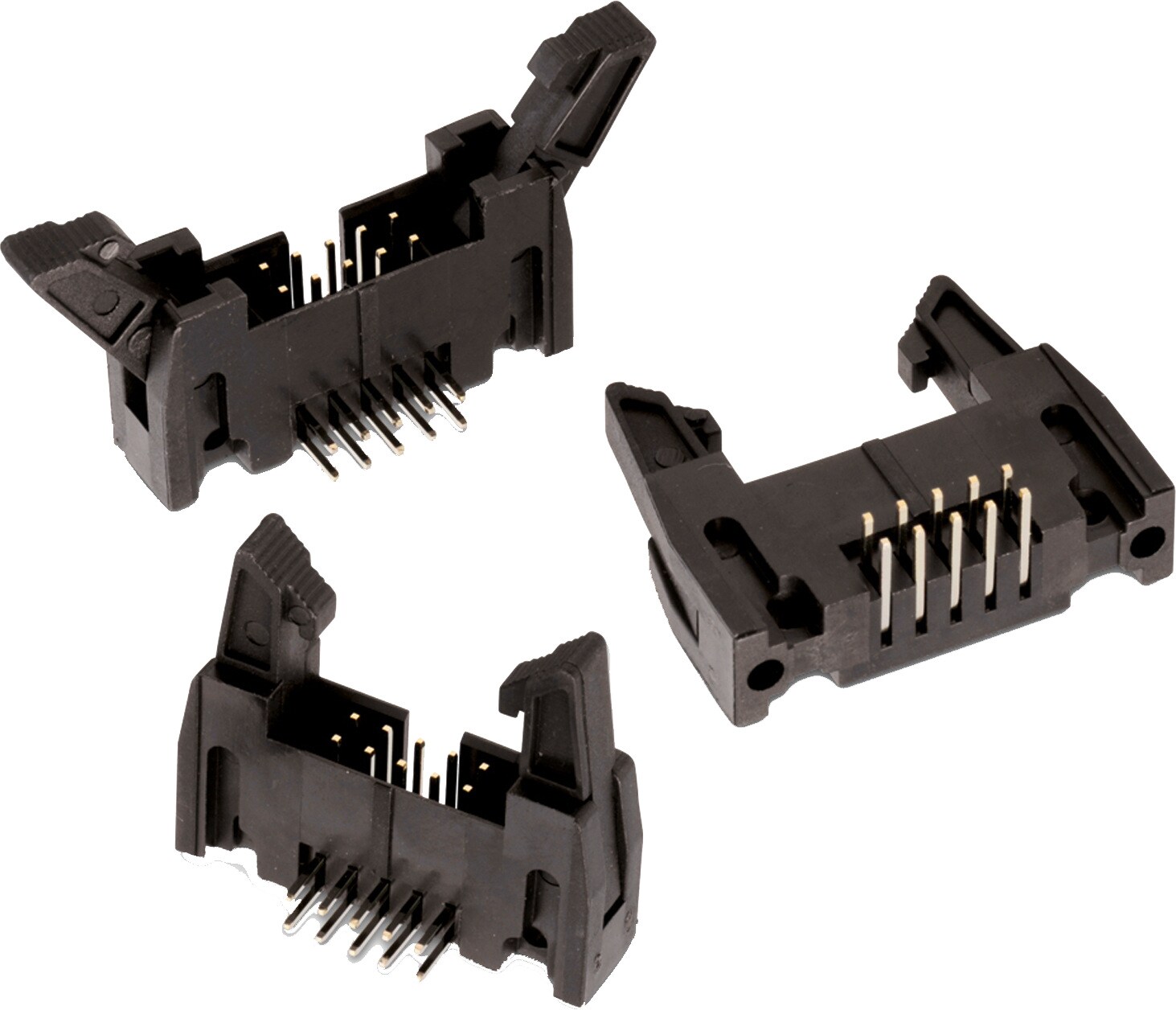

2.54 mm Male Angled Box Header with long lever | Electromechanical Components | Würth Elektronik Product Catalog

: Products Reference Designs Applications & Industries

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-BHD Box Header Pitch2.54 mm GenderMale PCB side Product series2.54 mm Male Angled Box Header with long lever

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C; -40 °C up to +125 °C
Compliance	RoHS
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2.54 mm
Gender	Male

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
61201022921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61201022921_1 (rev1).pdf \| 123.3 KB IGS 61201022921 (rev1).igs \| 1.6 MB STP 61201022921 (rev1).stp \| 598.8 KB Download all 6 files as zip archive ZIP	10	2.54	Male	Angled	THT	32.2	3	250	20	max.	Tray	612001
61201422921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61201422921_1 (rev1).pdf \| 130.5 KB IGS 61201422921 (rev1).igs \| 1.7 MB STP 61201422921 (rev1).stp \| 647.9 KB Download all 6 files as zip archive ZIP	14	2.54	Male	Angled	THT	32.2	3	250	20	max.	Tray	612001
61201622921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61201622921_1 (rev1).pdf \| 130.9 KB IGS 61201622921 (rev1).igs \| 1.8 MB STP 61201622921 (rev1).stp \| 672.2 KB Download all 6 files as zip archive ZIP	16	2.54	Male	Angled	THT	39.82	3	250	20	max.	Tray	–
61202022921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61202022921_1 (rev1).pdf \| 148 KB IGS 61202022921 (rev1).igs \| 1.9 MB STP 61202022921 (rev1).stp \| 721.9 KB Download all 6 files as zip archive ZIP	20	2.54	Male	Angled	THT	44.7	3	250	20	max.	Tray	612001
61202422921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61202422921_1 (rev1).pdf \| 155.4 KB IGS 61202422921 (rev1).igs \| 2 MB STP 61202422921 (rev1).stp \| 770.5 KB Download all 6 files as zip archive ZIP	24	2.54	Male	Angled	THT	49.98	3	250	20	max.	Tray	–
61202622921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61202622921_1 (rev1).pdf \| 159.2 KB IGS 61202622921 (rev1).igs \| 2.1 MB STP 61202622921 (rev1).stp \| 795 KB Download all 6 files as zip archive ZIP	26	2.54	Male	Angled	THT	52.52	3	250	20	max.	Tray	–
61203422921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61203422921_1 (rev1).pdf \| 173.9 KB IGS 61203422921 (rev1).igs \| 2.3 MB STP 61203422921 (rev1).stp \| 893 KB Download all 6 files as zip archive ZIP	34	2.54	Male	Angled	THT	62.68	3	250	20	max.	Tray	612001
61204022921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61204022921_1 (rev1).pdf \| 184.6 KB IGS 61204022921 (rev1).igs \| 2.5 MB STP 61204022921 (rev1).stp \| 968 KB Download all 6 files as zip archive ZIP	40	2.54	Male	Angled	THT	70.3	3	250	20	max.	Tray	–
61205022921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61205022921_1 (rev1).pdf \| 205.8 KB IGS 61205022921 (rev1).igs \| 2.8 MB STP 61205022921 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	50	2.54	Male	Angled	THT	83	3	250	20	max.	Tray	–
61206022921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 61206022921_1 (rev1).pdf \| 224.8 KB IGS 61206022921 (rev1).igs \| 3.1 MB STP 61206022921 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	60	2.54	Male	Angled	THT	95.7	3	250	20	max.	Tray	–

Order Code	Datasheet
61201022921	SPEC
61201422921	SPEC
61201622921	SPEC
61202022921	SPEC
61202422921	SPEC
61202622921	SPEC
61203422921	SPEC
61204022921	SPEC
61205022921	SPEC
61206022921	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples

Mates with

WR-BHD 2.54 mm Female IDC Connector with Strain Relief

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Box Headers and Flat Cable
