OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyWire-to-Board ConnectorsProduct sub-familyWR-BHD Box HeaderPitch2.00 mmGenderFemaleProduct seriesWR-BHD 2.00 mm Female IDC Connector w. Strain Relief

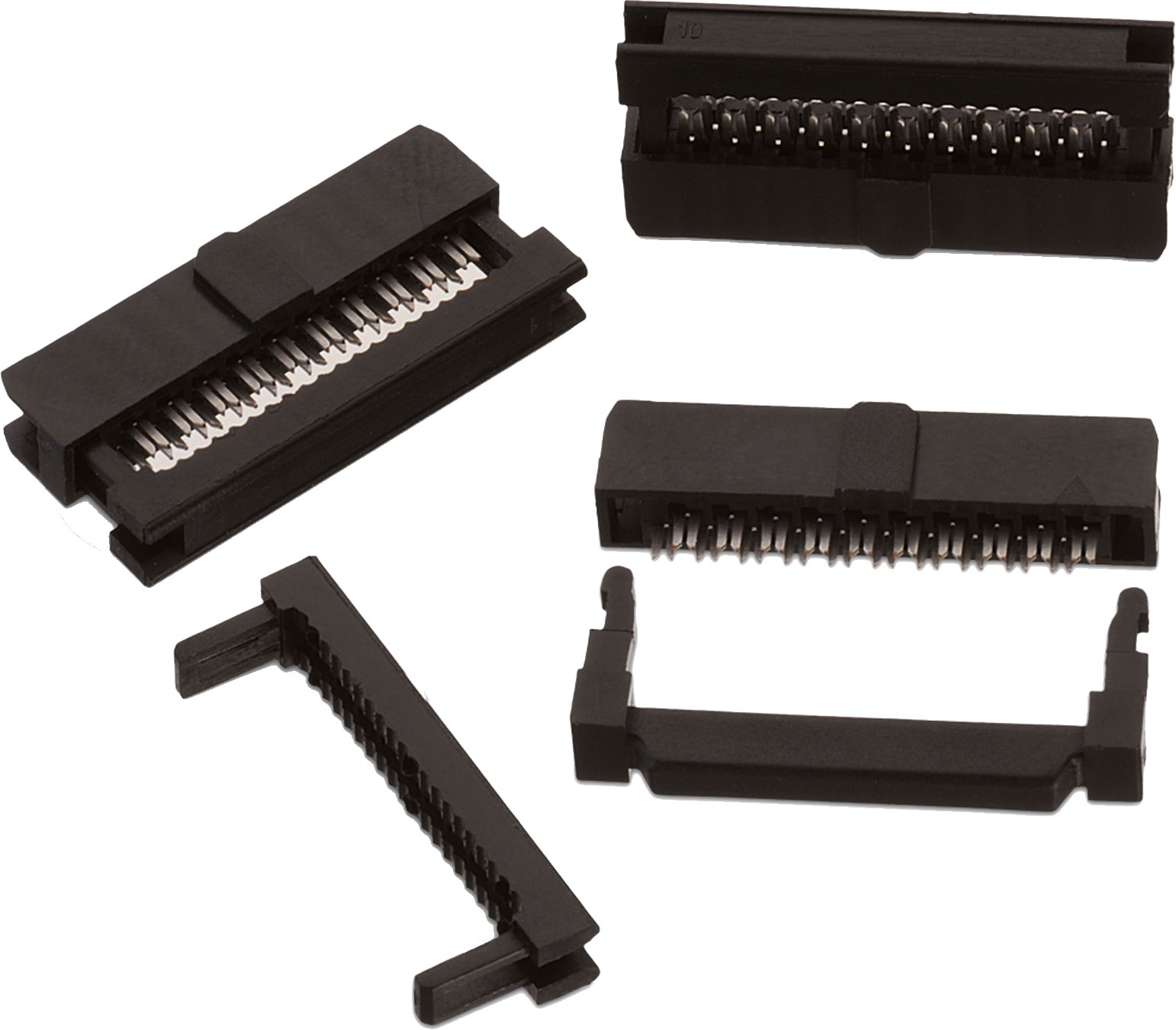

WR-BHD 2.00 mm Female IDC Connector w. Strain Relief

Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
General Information
Operating Temperature-40 °C up to +105 °C
Working Voltage250 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Pitch2 mm
GenderFemale
Certification
UL ApprovalE323964
Packaging Properties
PackagingTray

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
GenderL
(mm)
IR
(A)
Working Voltage
(V (AC))
Contact Resistance
(mΩ)
Tol. RPackagingDesign Kit Samples
62501023021SPEC
3 files 10 2 Female 15.2 1 250 20 max. Tray612001
612690
62501423021SPEC
3 files 14 2 Female 19.2 1 250 20 max. Tray612001
62501623021SPEC
3 files 16 2 Female 21.2 1 250 20 max. Tray612001
62502023021SPEC
3 files 20 2 Female 25.2 1 250 20 max. Tray612001
62502423021SPEC
3 files 24 2 Female 29.2 1 250 20 max. Tray
62502623021SPEC
3 files 26 2 Female 31.2 1 250 20 max. Tray612001
62503023021SPEC
3 files 30 2 Female 35.2 1 250 20 max. Tray612001
62503423021SPEC
3 files 34 2 Female 39.2 1 250 20 max. Tray612001
62504023021SPEC
3 files 40 2 Female 45.2 1 250 20 max. Tray612001
62504423021SPEC
3 files 44 2 Female 49.2 1 250 20 max. Tray
62505023021SPEC
3 files 50 2 Female 55.2 1 250 20 max. Tray612001
Order Code Data­sheet
62501023021SPEC
62501423021SPEC
62501623021SPEC
62502023021SPEC
62502423021SPEC
62502623021SPEC
62503023021SPEC
62503423021SPEC
62504023021SPEC
62504423021SPEC
62505023021SPEC
