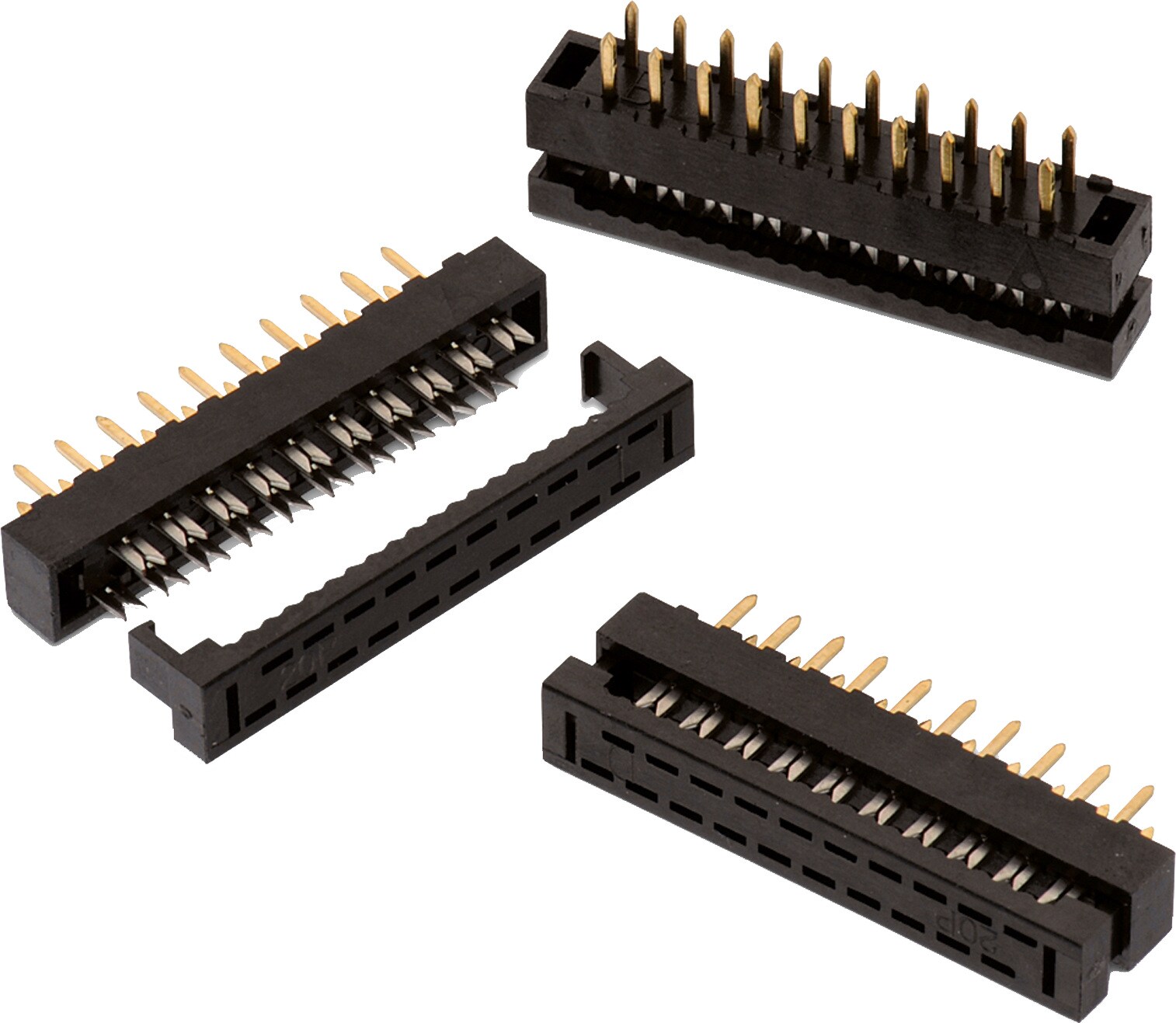

WR-BHD 2.00 mm Board to Cable Transition Connector

Kind Properties
Pitch 2 mm
Gender Transition
Material Properties
Insulator Material PBT
Insulator Flammability Rating UL94 V-0
Color Black
Contact Material Copper Alloy
Contact Plating Selective Gold
Contact Type Stamped
General Information
Operating Temperature -40 up to +125 °C
Compliance RoHS
Working Voltage 250 V (AC)
Withstanding Voltage 500 V (AC)
Contact Resistance 20 mΩ
RISO 1000 MΩ
Certification
UL Approval E323964
Packaging Properties
Packaging Tray

Products

Order Code SPEC Downloads Pins Pitch
(mm)
Gender L
(mm)
IR 1
(A)
Working Voltage
(V (AC))
Contact Resistance
(mΩ)
Tol. R Packaging Design Kit Samples
62501022323
STE 3D ALT EAG IGS CAD 10 2 Transition 14.1 1 250 20 max. Tray 612001
62501422323
STE 3D ALT EAG IGS CAD 14 2 Transition 18.1 1 250 20 max. Tray 612001
62502022323
STE 3D ALT EAG IGS CAD 20 2 Transition 24.1 1 250 20 max. Tray 612001
62502622323
STE 3D ALT EAG IGS CAD 26 2 Transition 30.1 1 250 20 max. Tray 612001
612690
62503022323
STE 3D ALT EAG IGS CAD 30 2 Transition 34.1 1 250 20 max. Tray 612001
62503422323
STE 3D ALT EAG IGS CAD 34 2 Transition 38.1 1 250 20 max. Tray 612001
62504022323
STE 3D ALT EAG IGS CAD 40 2 Transition 44.1 1 250 20 max. Tray 612001
62505022323
STE 3D ALT EAG IGS CAD 50 2 Transition 54.1 1 250 20 max. Tray 612001
Order Code SPEC
62501022323
62501422323
62502022323
62502622323
62503022323
62503422323
62504022323
62505022323
Samples
Order Code SPEC Downloads Pins Pitch
(mm)
Gender L
(mm)
IR 1
(A)
Working Voltage
(V (AC))
Contact Resistance
(mΩ)
Tol. R Packaging Design Kit Samples
