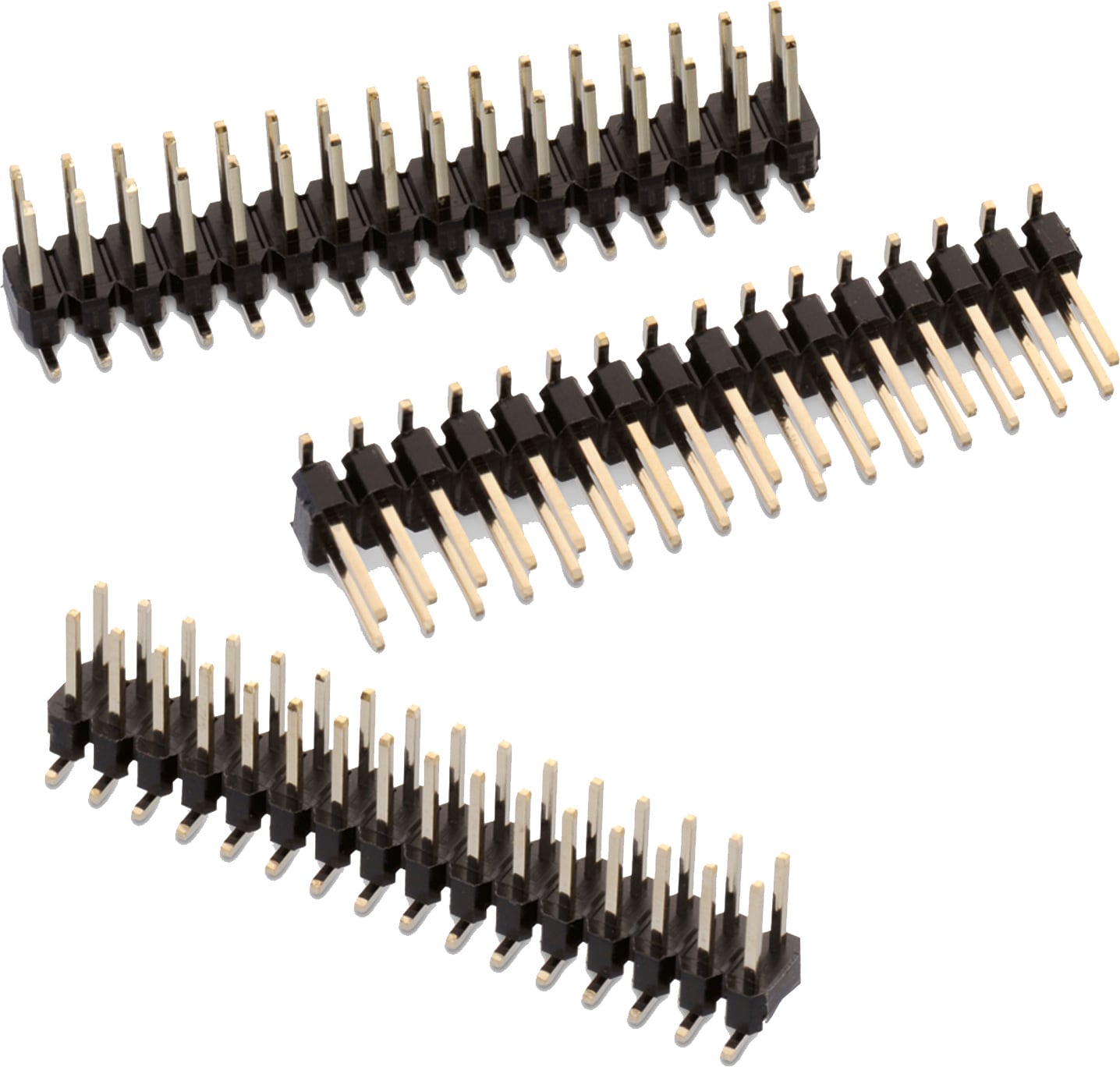

| Article Properties | |
|---|---|
| Pins | 4; 6; 8; 10; 12; 14; 16; 20 |
| Kind Properties | |
|---|---|
| P | 2.54 mm |
| Reihen | Dual |
| Gender | Pin Header |
| Typ | Gerade |
| Material Properties | |
|---|---|
| Isolationsmaterial | Nylon 6T |
| Isolation Brennbarkeitsklasse | UL94 V-0 |
| Kontaktmaterial | Kupferlegierung |
| Kontaktbeschichtung | Gold |
| Kontakttyp | Stamped |
| General Information | |
|---|---|
| Betriebstemperatur | -40 up to +105 °C |
| Electrical Properties | |
|---|---|
| Spannungsfestigkeit | 500 V (AC) |
| Kontaktwiderstand | 20 mΩ |
| RISO | 1000 MΩ |
| Certification | |
|---|---|
| UL-Zulassung | E323964 |
| Packaging Properties | |
|---|---|
| Verpackung | Tape and Reel with Cap |
Artikeldaten
| Artikel Nr. | Datenblatt | Downloads | Pins | Reihen | Gender | Typ | IR (A) | Verpackung | Design Kit | Muster |
|---|---|---|---|---|---|---|---|---|---|---|
| 61030421121 | STE 3D ALT EAG IGS CAD | 4 | Dual | Pin Header | Gerade | 3 | Tape and Reel with Cap | – | ||
| 61030621121 | STE 3D ALT EAG IGS CAD | 6 | Dual | Pin Header | Gerade | 3 | Tape and Reel with Cap | 613001 | ||
| 61030821121 | STE 3D ALT EAG IGS CAD | 8 | Dual | Pin Header | Gerade | 3 | Tape and Reel with Cap | – | ||
| 61031021121 | STE 3D ALT EAG IGS CAD | 10 | Dual | Pin Header | Gerade | 3 | Tape and Reel with Cap | 613001 | ||
| 61031221121 | STE 3D ALT EAG IGS CAD | 12 | Dual | Pin Header | Gerade | 3 | Tape and Reel with Cap | – | ||
| 61031421121 | STE 3D ALT EAG IGS CAD | 14 | Dual | Pin Header | Gerade | 3 | Tape and Reel with Cap | – | ||
| 61031621121 | STE 3D ALT EAG IGS CAD | 16 | Dual | Pin Header | Gerade | 3 | Tape and Reel with Cap | – | ||
| 61032021121 | STE 3D ALT EAG IGS CAD | 20 | Dual | Pin Header | Gerade | 3 | Tape and Reel with Cap | – |
| Artikel Nr. | Datenblatt |
|---|---|
| 61030421121 | |
| 61030621121 | |
| 61030821121 | |
| 61031021121 | |
| 61031221121 | |
| 61031421121 | |
| 61031621121 | |
| 61032021121 |
| Muster |
|---|
| Artikel Nr. | Datenblatt | Downloads | Pins | Reihen | Gender | Typ | IR (A) | Verpackung | Design Kit | Muster |
|---|
