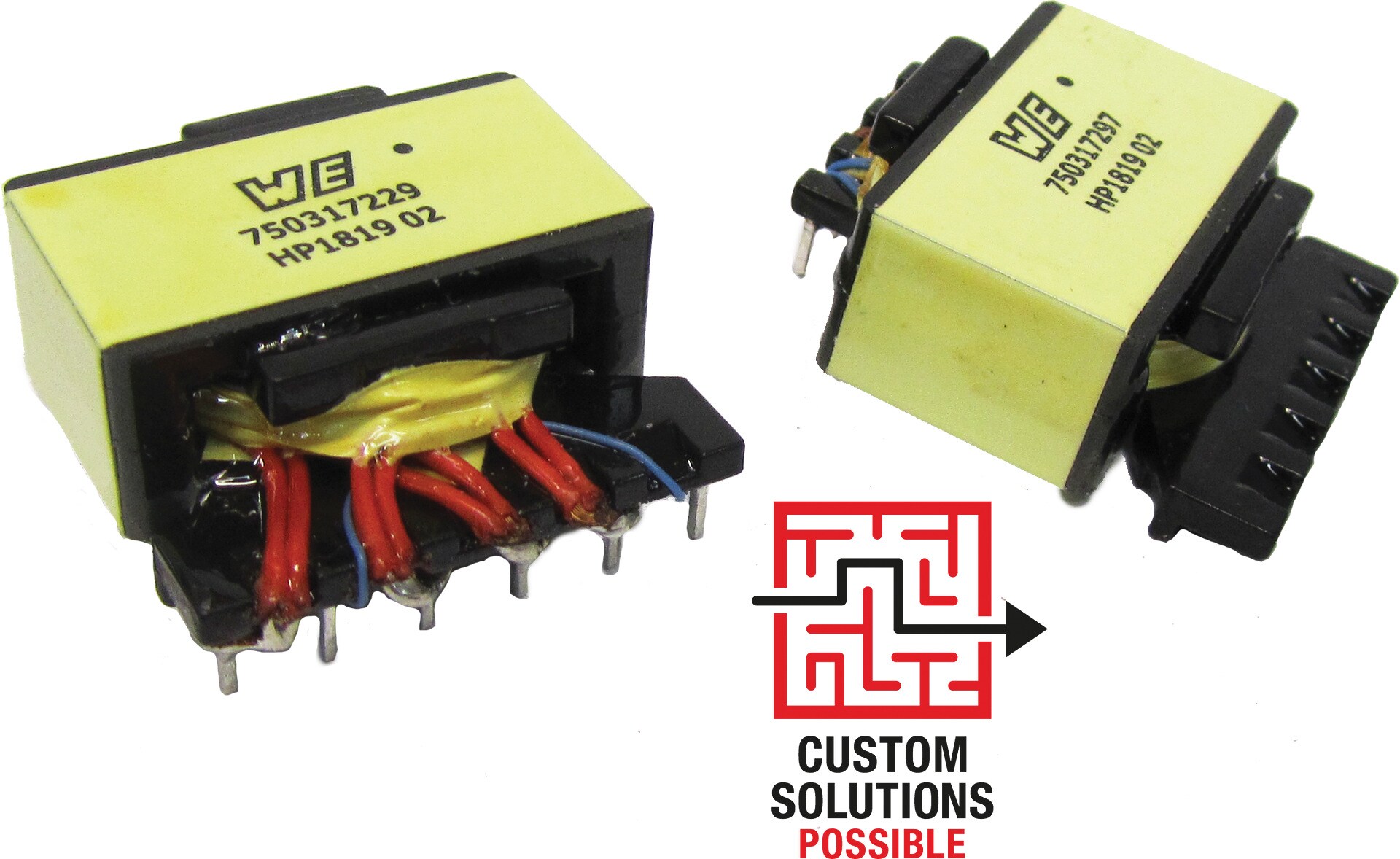

ProduktbereichCustom Magnetics ProduktgruppeFinished Magnetic Components ProduktfamiliePower Magnetics ProduktunterfamilieOffline LLC Transformers ProduktserieMID-LLCNAV Offline LLC Transformers for Navitas Semiconductor

	Bauform	L (mm)	W (mm)	H (mm)	Montageart
	ER25/4.9/15	26.5	32.1	11	THT

Merkmale

Low profile height: 11mm max.
High efficiency
Reinforced insulation
Up to 150W
High power density
Small land size
THT mount

Anwendung

GaN power supplies
High frequency power supplies
White goods
Fast charging
High efficiency charging

Artikeldaten

ER25/4.9/15

	Artikel Nr.	Datenblatt	Downloads	V_in	V_Out1 (V)	I_Out1 (A)	V_{aux 1} (V)	V_{aux 2} (V)	f_switch (kHz)	L₁ (µH)	N_PRI : N_SEC : N_AUX	I_SAT1 (A)	V_T (V (AC))	L (mm)	W (mm)	H (mm)	Montageart	Muster
	750317229	SPEC	–	385 - 415 V (DC)	19	8	27	9	500	190	11 : 1 : 1.5 : 1	2.3	3000	26.5	32.1	11	THT

	Artikel Nr.	Datenblatt
	750317229	SPEC
